| RUBBER INDUSTRIAL HOSE |
|
|
| |
| RUBBER HEAT RESISTANT CARBON FREE/CABLE COOLANT HOSE/ASBESTOS COVERED FURNACE COOLANT HOSE |
 |
 |
| Carbon Free Hose |
: |
Non-Conductive (electrical) hose used as an outer productive covering for power cable in steel mills,glass works etc. To avoid damage to cables,leakage of current due to exposure to open flame splashes of hot metal or radiation. |
| Cable Coolant Hose
Plain Or Asbestos Cover |
: |
Used for conveying power cable with a mix of oil as an additional Sprotection from exposure to extremely high temperature radiation from steel furnace open flame etc. |
| Furnace Coolant
Abestos
Covered Hose |
: |
Especiallly designed for service in iron and steel mills, glass works,electrical
furnaces and out fields where hose resistant to heat radiation open flame
and splashes of hot metals is required.Heat Resistant. |
| ConstructionONSTRUCTION
Tube |
: |
White or black smooth non-conductive synthetic rubber compound oil & electrical resistant. |
Reinforcement |
: |
Textile reinforcement impregnated
with rubber in suitable numbers of
piles or synthetic fibre yarn. |
Cover |
: |
Oil & heat or electrical resistant synthetic rubber compound white non-conductive (electrical) rubber with asbestos cloth capable to withstand temperature upto 500c (932f) |
Temperature Range |
: |
-40f to + 300f |
Length |
: |
Max.18 metres |
|
|
| |
|
|
Nominal bore in mm |
Tolerance on Nominal bore in mm |
Number of reinforcement ply |
Working Pressure Kg.f/cm2 |
Testing Pressure Kg.f/cm2 |
Bursting Pressure Kg.f/cm2 |
12.5 |
0.75 |
2 |
10 |
20 |
40 |
16.0 |
0.75 |
2 |
10 |
20 |
40 |
20.0 |
0.75 |
2 |
10 |
20 |
40 |
25.0 |
1.25 |
2 |
10 |
20 |
40 |
28.0 |
1.25 |
2 |
10 |
20 |
40 |
31.0 |
1.25 |
3 |
10 |
20 |
40 |
35.0 |
2.00 |
3 |
10 |
20 |
40 |
38.0 |
2.00 |
3 |
10 |
20 |
40 |
50.0 |
2.00 |
4 |
10 |
20 |
40 |
56.0 |
2.00 |
4 |
10 |
20 |
40 |
60.0 |
2.50 |
4 |
10 |
20 |
40 |
63.0 |
2.50 |
5 |
10 |
20 |
40 |
70.0 |
2.50 |
5 |
10 |
20 |
40 |
75.0 |
2.50 |
5 |
10 |
20 |
40 |
88.0 |
2.50 |
5 |
10 |
20 |
40 |
100.0 |
2.50 |
5 |
10 |
20 |
40 |
|
|
|
| |
 |
| |
| RUBBER MULTI PURPOSE WATER DELIVERY HOSE (AS PER IS : 444/1987) |
|
|
| Application |
: |
Multi purpose water delivery hose for service ata all construction sites, dams, mines,
irrigation, fire fighting, railways and gardening and domestic use. |
Construction
Tube |
: |
Seamless, uniform in thickness and smooth in bore. |
Reinforcement |
: |
Suitable Numbers of Piles of woven textile or braiding of high strength synthetic fibre or cotton cloth. |
Cover |
: |
Black abrasion resistant rubber cover nylon tape marked finish or smooth plain finish. |
Temperature Range |
: |
-40f to + 160f |
Length |
: |
1. steel Mandrel built hoses
up to 18 meters max.
2. Plain Rayan Braided hoses in long lengths.
3. New wrap finish flexible menderal built rayon braided hoses in long
length up to 38 m.m. Size |
|
|
| |
|
Specifications |
Technical Specifications |
Type-I |
Type-II |
| Nominal bore in mm |
Tolerance on Nominal bore in mm |
Minimum Thickness of lining in mm |
Minimum Thickness of Covers in mm |
Working Pressure Kg.f/cm2 |
Testing Pressure Kg.f/cm2 |
Bursting Pressure Kg.f/cm2 |
Working Pressure Kg.f/cm2 |
Testing Pressure Kg.f/cm2 |
Bursting Pressure |
| 12.0 |
0.75 |
1.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 20.0 |
0.75/1.25 |
1.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 25.0 |
1.25 |
2.00 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 31.5 |
1.25 |
2.00 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 38.0 |
1.25 |
2.00 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 45.0 |
1.50 |
2.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 50.0 |
1.50 |
2.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 63.0 |
1.50 |
2.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 75.0 |
2.00 |
2.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
| 100.0 |
2.00 |
2.50 |
1.00 |
06 |
12 |
19 |
10 |
20 |
30 |
|
|
|
| |
|
| |
| RUBBER SAND / SHOT BLAST HOSE (AS PER IS : 5894 / 1980) |
|
| Application |
: |
This special hose has an extra soft & thick smooth tube
for sand / shot blasting systems using gravels,quartz,sand and steel
ball shots.It finds application
for clearing metal surface,smoothing castings,etching glass etc. |
Construction
Tube |
: |
Seamless, extra thick but uniform in thickness and soft tube. |
Reinforcement |
: |
Textile reinforcement impregnated with rubber in suitable number of piles or synthetic fibre. |
Electrical Bonding |
: |
Antistatic copper wire provided for electrical continuity if required. |
Cover |
: |
Abrasion & weather resistant rubber cover. |
Temperature Range |
: |
-40f to 160f |
Length |
|
Max.18
meters |
|
|
| |
|
|
| |
|
| |

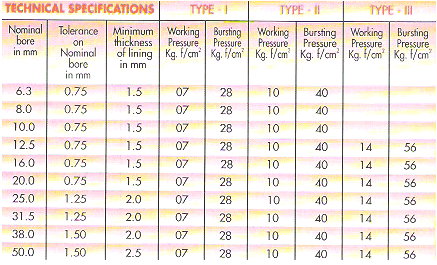

| RUBBER AIR, PNEUMATIC TOOL, ROCK DRILL HOSE (AS PER IS : 446 / 1987) |
|
| APPLICATION |
: |
Type i and Type ii : Hoses are recommended for use with
compressors, irrigation dams, road construction sites, mines and various
industrial applications.
Type iii : Recommended for rock drilling mines, crusher zones,
tunnels, road constructions, and for service under rugged conditions. |
CONSTRUCTION
Tube |
: |
Seamless, uniform in thickness smooth bore and concentric rubber tube resistant to oil mist. |
Reinforcement |
: |
Textile
reinforcement impregnated with rubber in suitable numbers of piles or braided with high strength synthetic
fiber
or high tensile steel wire. |
Cover |
: |
Black rubber cover with nylon tape finish or plain with weather and abrasion resistant compound. |
Temperature Range |
: |
-40 f to + 160 f |
Length |
: |
a)
Steel menderal built hoses up to 18 mtrs Max.
b) Plain braided hoses in long length
c) New wrap finish flexible menderal built (same). |
|
|
| |
|
|
| |
|
| RUBBER HOT WATER HOSE (AS PER IS : 5821/1986) |
|
| Application |
: |
Specially used to pass hot water below 100c temperature for use in steel mills,locomotives and industrial purpose. |
Construction
Tube |
: |
Smooth in bore uniform in thickness natural & synthetic rubber compound,resistant to hot water below 100c temperature. |
Reinforcement |
: |
Textile reniforcement impregnated with rubber in suitable numbers of plies or synthetic yarn braided. |
Electrical Bonding |
: |
Antistatic copper wire provided for electrical continuity if required. |
Cover |
: |
Rubber cover wrap finish. |
Temperature Range |
: |
up to 210f |
Length |
|
Max.18
meters |
|
|
|
|
| |
|
| RUBBER STEAM HOSE (AS PER IS 10655 / 1983) |
|
| Application |
: |
To convey the saturated steam at specified steam pressure
for use in steel mills, thermal plants, oil plants ,fertiltzer plants,
and heavy engineering industries. |
Construction
Tube |
: |
Smooth,seamless,uniform in thickness,synthetic rubber compound. |
Reinforcement |
: |
Piles of natural or synthetic woven textiles or cotton yarn braided. |
Electrical Bonding |
: |
Antistatic copper wire provided for electrical continuity if required. |
Cover |
: |
Synthetic rubber compound resistant to abrasion and heat with wrap finish. |
Temperature Range |
: |
up to 300f |
Length |
|
a) Steel menderal built hoses
up to 18 meters Max.
b) New wrap finish flexible menderal built rayon
braided hoses in long length upto 38 mm.
meters. |
|
|
|
|
| |
|
| RUBBER CEMENT GROUTING HOSE (AS PER IS : 5137 / 1990) |
|
| APPLICATION |
: |
Recommended for cement
grouting at building sites, irrigation projects and construction of road
on hills, for carrying wet & dry concrete mixture and cement. |
CONSTRUCTION
Tube |
: |
Uniform, Seamless tube of highly abraison resistant soft rubber compound of natural and synthetic rubber blend. |
Reinforcement |
: |
Textile reinforcement impregnated with rubber in suitable number of plies or synthetic
fiber. |
Electrical Bonding |
: |
One
or two copper wires comprising a number of strands are incorporated
between the reinforcement piles to provide electrical continuity. |
Cover |
: |
Wrap finish rubber cover to with stand rough handling. |
Temperature Range |
: |
-40F TO + 160F |
Length |
|
Max 18 Metres. |
|
|
|
|
| |
|
| RUBBER MULTIPURPOSE CHEMICAL HOSE (AS PER IS : 7654 / 1987) |
|
| Application |
: |
Recommended for conveying wide range of chemicals such as minerals acids, alkalies,
solution of inorganic salts,
alcoholic materials during
production and in transfer
operations. |
Construction
Tube |
: |
Seamless black or white synthetic or natural rubber tube resistant to various chemicals. |
Reinforcement |
: |
Textile reinforcement impregnated with rubber in suitable number or piles or synthetic fibre. |
Cover |
: |
Rubber cover resistant to chemicals. |
Temperature Range |
: |
-40F TO + 250F |
Length |
|
New wrap finish flexible mendral
built rayon braided hoses in long
length up to 38 m.m. Size. |
|
|
|
|
| |
|

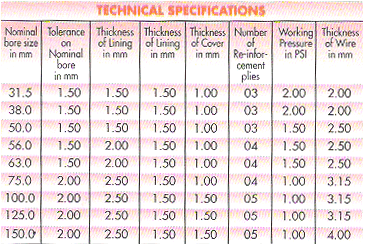

| RUBBER WATER SUCTION HOSE (LIGHT DUTY) (AS PER IS : 2482 / 1990) |
|
| APPLICATION |
: |
Light
duty water suction hose for
service in irrigation, dam,
projects, agriculture,
industries, construction sites,
and for dewatering of pits and
mines. |
CONSTRUCTION
Tube |
: |
Seamless black or white synthetic or natural rubber tube resistant to various chemicals. |
Reinforcement |
: |
Textile reinforcement impregnated with rubber in suitable number or piles or synthetic fibre. |
Cover |
: |
Corrugated, wrap finished,
abrasion & weather resistant outer
cover. |
Temperature Range |
: |
-40F TO + 160F |
Length |
|
Max 18 Mtrs. up to 75mm. 7.5 Mtrs.
up to 150mm. |
|
|
|
|
| |
|
| RUBBER DOUBLE ARMORED WATER SUCTION & DISCHARGE HOSE (HEAVY DUTY) (AS PER IS : 3549 / 1983) |
|
| Application |
: |
Recommended for heavy duty water
suction & discharge service very
rugged but flexible hose
applicable both for dewatering
and delivery requirements during
excavation of mines, project
construction, deflooding
operations, and for handling
waste water, mud & sewarage. |
| Type of Hoses |
: |
1. Hose with rough bore.
2. Hose with
smooth bore. |
Construction Tube |
: |
A blend of natural and synthetic rubber compound resistant of water and abrasion. |
Reinforcement |
: |
Natural or synthetic fabric or a
combination thereof with two helical
G.I. Wire (As per IS 280/1978)
embedded between the reinforcement
plies in case of rough bore, of the
two helical wire reinforcement
first is internal and visible from
inside and the second is embedded
between layers of plies. |
Cover |
: |
Corrugated or plain wrap
finish outer cover made from natural
rubber compound resist ant to
abrasion and weather. |
| Ends |
: |
Each hose length has soft plain end
on each side for clamping. |
Temperature Range |
: |
-40f TO +158f |
Length |
: |
Up to 75mm. 15 meters, Above 75mm,
7.5 metres. |
|
|
|
|
| |
|
| RUBBER PETROL DISPENSING HOSE (AS PER IS : 2396 / 1981) |
|
| Application |
: |
Specially for use in dispensing pumps for petrol & diesel and other fuels. |
Construction Tube |
: |
Smooth, seamless, uniform in thickness to be of synthetic rubber compound resistant to petroleum and diesel fuel. |
Reinforcement |
: |
Two plies of cotton fiber yarn with suitable strength. |
Cover |
: |
Synthetic rubber compound resistant to abrasion,weather petrol and diesel fuels with wrap finished. |
Electricity Continuity |
: |
One or two electrically banded wires between braided of cotton yarns between braided of cotton yarns throughout the hose length. |
Temperature Range |
: |
-40 f to + 210 f |
Length |
: |
16 metres or long length |
|
|
|
|
| |
|
| RUBBER CAR WASHING HOSE (AS PER IS : 446 / 1987) |
|
| Application |
: |
Used for delivery of water for sprayers and sprinklers for
irrigation systems, service station and other industries. |
Construction Lining |
: |
Uniform seamless lining of blend of natural and synthetic rubber |
Reinforcement |
: |
Piles of women textile or braiding of high strength synthetic
fiber or high tensile steel wire braided. |
Cover |
: |
Black, smooth cloth marked finish of weather, oil and abrasion resistant rubber cover. |
Length |
: |
Menderal built hoses up to 18-Meters length in wrap finish.
Plain braided hoses in long length.
New wrap finish flexible menderal built rayon braided hoses in long length. |
|
|
|
|
| |
|
| RUBBER BREWERY AND FOOD GRADE HOSE (AS PER IP : B S 5118) |
|
| Application |
: |
Recommended for breweries for conveying wine and alcoholic
and soft beverages, such as fruit, juices ,vineger ,mineral
water,Wine,Beer of similar non fat containing food stuffs.It is so
designed as not to impart any objectionable taste or odour. |
Construction Tube |
: |
Ultra
white super hygienic quality of synthetic rubber free from odour taste
or toxic effects, resistant to the liquid intented to be used . |
Reinforcement |
: |
Textile impregnated with rubber |
Cover |
: |
Blue rubber cover |
Temperature Range |
: |
-40 f to + 210 f |
Length |
: |
Max 18 metres |
|
|
|
|
| |
|

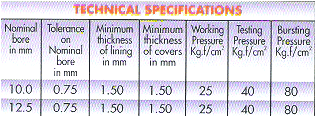

| RUBBER WELDING HOSE (AS PER IS : 447/1988) |
|
| Application |
: |
Recommended for oxygen acetylene welding & gas cutting
in steel mills, garages, ship building, power houses and at small
fabrication etc. |
Construction Tube |
: |
Black, seemless, uniform in thickness tube of a blend of natural & synthetic rubber compound. |
Reinforcement |
: |
Braided or Textiles reinforcement impregnated with rubber in suitable number of piles. |
Cover |
: |
Rubber cover in Red,Blue/Black color |
Temperature Range |
: |
-40 f to 160f |
Length |
: |
A) Steel menderal built hoses upto 18 mts. Max.
B) Plain braided hoses in long length.
C) New wrap finish flexible menderal built rayon braided hoses in long length. |
|
|
|
|
| |
|
| RUBBER OIL SUCTION/DISCHARGE ROAD/RAIL OIL DECANTING HOSE (AS PER IS : 10733 /1983) |
|
| Application |
: |
For handling and transferring petroleum products, like
petrol, diesel oils,industrial fuels kerosene etc. In road / rail
tankers and storage tanks. |
Construction Tube |
: |
Uniform lining of suitable rubber compound resistant to oil and petroleum products.Tube is seamless upto 88 mm NB. |
Reinforcement |
: |
Textile reinforcement with embedded steel wire helix. |
Electrical Bonding |
: |
Anti
static copper wire is incorporated between the reinforcement plies to
provide electrical continuity along the whole length of the hose. |
Cover |
: |
Rubber cover resistant to oil, weather and abrasion. |
Temperature Range |
: |
-40 f to + 250f. |
Length |
: |
Max 18 Mtr upto 75 mm.
7.5 Mtr upto 100 mm |
|
|
|
|
| |
|
|
|
|
| |
|
